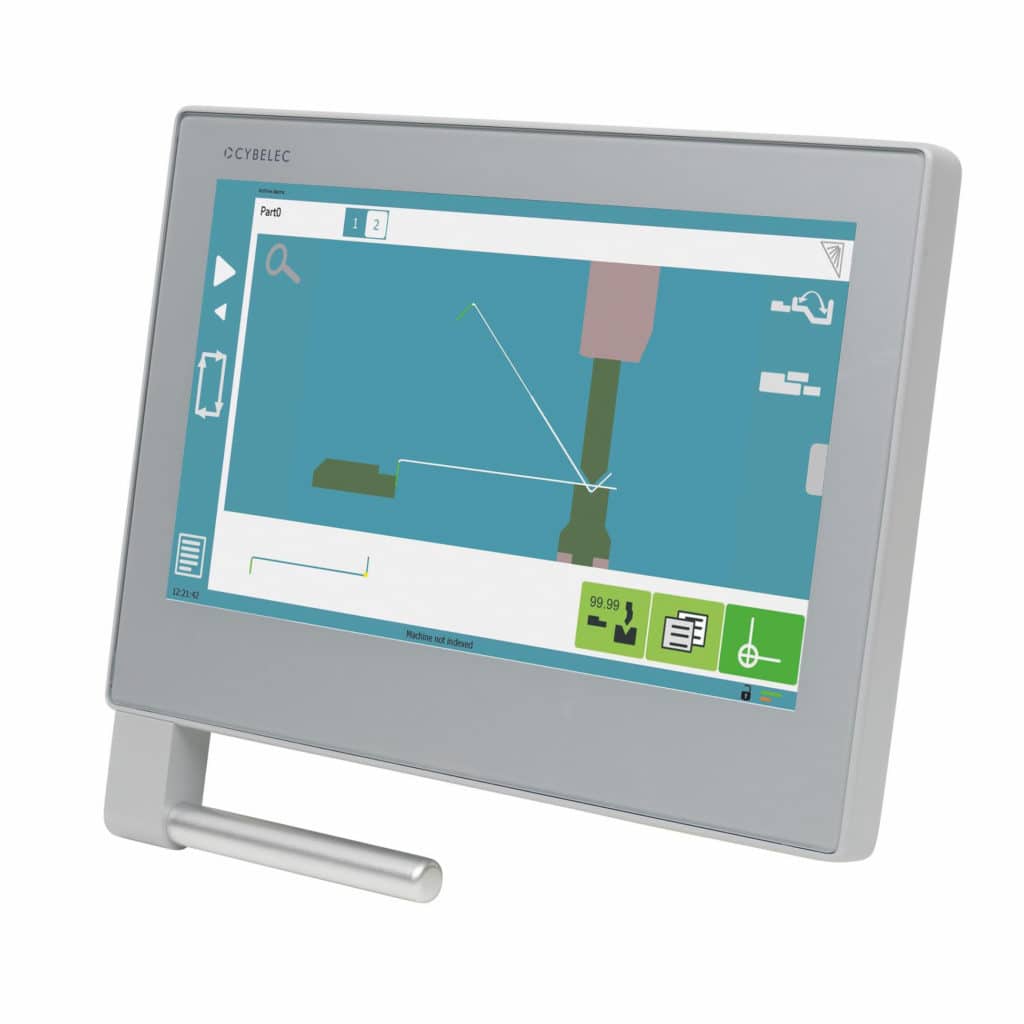

VisiPac
Full Digital and Compact Numerical Control for Press Brakes
Modern compact CNC concept
- CNC mounted on the back of the screen
- Interface module in the cabinet
- Open software platform allowing customization
- 19’’ glass touch screen
Full digital concept
- EtherCAT and CANopen
- Windows 10 with power cut protection
- Industry 4.0 ready
User-friendly interface
- Intuitive programming
- Touch Profile
- 3D viewers
Main features for the user
- 19” modern streamlined glass surface touch screen that can be used with gloves
- User friendly HMI thanks to intuitive programming
- 2D graphic profile and 3D viewer
- Automatic bending sequence calculation
- All kinematics available
– for X, Xrelatives, Xslave, R, Rslave and Z axes,
– for Back and Front multiples gauges,
– for bending aids - Tandem
- Tools import
- Group management for complex production
- Preliminary / Final bend
- Hemming management
- Angle measurement
- Barcode reader
- Customizable, Industry 4.0
- Windows 10 for multitasking and networking
Main features for the OEM
- Set up with dedicated wizards (auto-tuning)
- Axis control through CANopen® and EtherCAT® with wide configuration capabilities
- Customizable User buttons for the machine operator
- Interactions with the beam cycle
- Plug-in for HMI part
- Open system for customization, special crowning, hybrid hydraulic machine
- Integrated robot control, synchronization with press brake sequences (robot CNC not necessary)
Ordering information
| VSP-84PS-2 | VisiPac, 4 axes (Y1, Y2, 2 axes), PS-2D with MX viewer |
| VSP-84PS-2/P | VisiPac Panel, 4 axes (Y1, Y2, 2 axes), PS-2D with MX viewer |
Options
- VisiTouch offline software
- VisiTouch MX offline software
- Bending aids sheet support
- Automatic angle measurement
- Tandem management
- Robot communication and control
- Industry 4.0 data management
